Description

THIS HEAT PRESS MUST SHIP FREIGHT

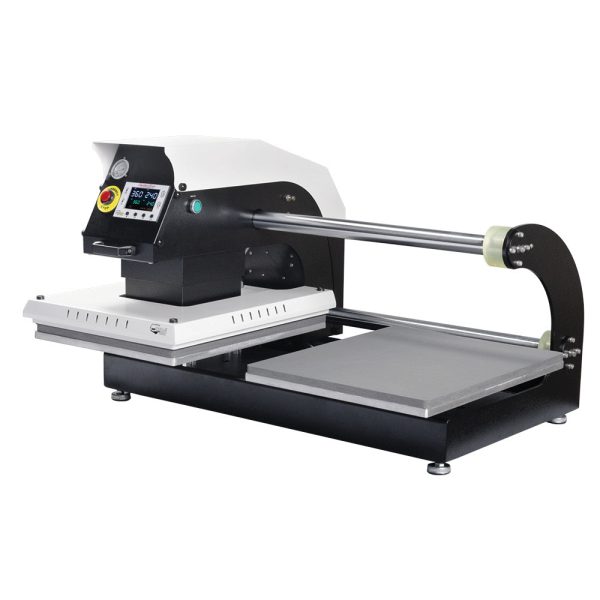

Introducing the HPN Signature Series 16 x 20 Double Station Pneumatic Heat Press. This brand new machine from Heat Press Nation has two stations, each with a 16 x 20 lower platen. This heat press features our Signature Series digital controller for dialing in the precise time and temperature settings and is powered by our sixteen by our heavy duty heating element, which ensures even and consistent heat throughout the entire pressing area.

The HPN Signature Series 16 x 20 Double Station Pneumatic Heat Press is our first pneumatic heat press! Simply set the pressure to the desired PSI using the knob on the control panel, and then press a button to lower the heating element onto your item. Once the timer reaches 0, the press will automatically open – all this is powered by an air compressor (sold separately). This eliminates the physical effort required to open and close the machine, which drastically reduces operator fatigue. This is an incredible leap forward in consistency since your transfers will now get the same time, temperature, and pressure applied EVERY TIME – no matter who is operating the machine.

The upper heating element and control panel are fixed on a track to easily slide back and forth between stations. While an item is being pressed at one station, you can easily load and prepare another item at your second station. When your first item is done, slide over the upper heating and control assembly and you’re already set to press your second item. This process can be repeated over and over, which means your press time is no longer downtime!

*A 10 gallon 2 HP air compressor required for usage (not included)*

Features:

		Double Station: Save time and increase your production with 2 separate lower platen workstations. The heating element slides side-to-side on rails that are located on the base of the press, allowing you to heat press one item while you prepare another for transfer!
		Pneumatic Operation:This advanced feature utilizes compressed air (air compressor sold separately) to automatically lower and raise the heating element. This reduces manual effort and ensures flawless, uniform results every time. Perfect for high-volume production.

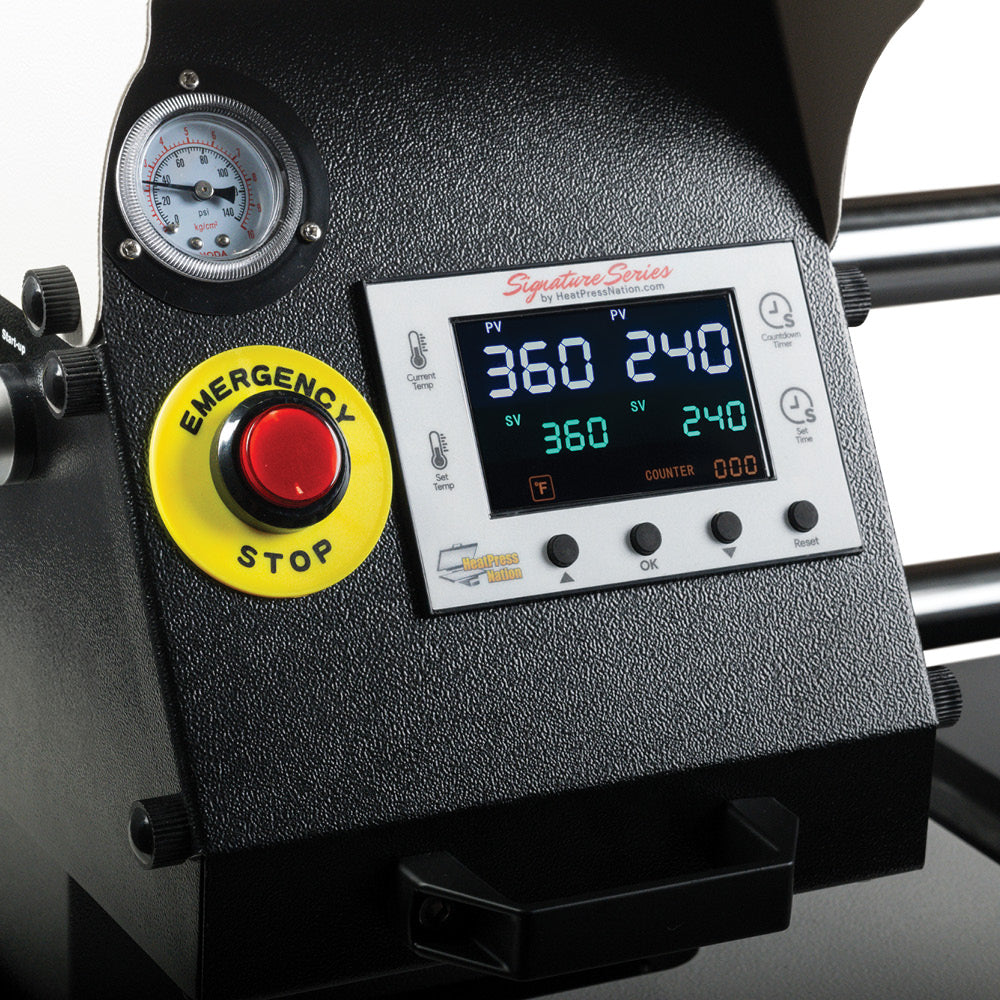

		Upgraded Time Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Signature Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds for it reaches zero to prevent overheating of your material.

• Improved heating element for quicker heat up
• Pneumatic pressure adjustment
• Reinforced structure to ensure high-pressure
• Adjustable low to high-pressure clamp
• Solid steel welded framework
• Complete commercial business grade
• Dual Fuse Protection
• Optional HPN Universal Heat Press Double Stand with Wheels available

• Specifications:

  • Heat Press Style: Auto-Open Pneumatic Double Station
  • Heat Press Base Dimensions: 35” x 21” (Length x Depth)

  • Overall Heat Press Dimensions: 43 x 32 x 24  (L x D x H in open position)

  • Gauge Reading: Fahrenheit or Celsius degree measure
  • Voltage: 120V
  • Power Rating: 1450W
  • Maximum Temperature: 400º F
  • Maximum Substrate Height:
    • With Silicone Pad: 1.2
    • Without Silicone Pad: 2
    • • Time Range: 0-999 Seconds
      • Shipping Weight: 353 lbs Crate

      • Warranty: 1 Year

      • A 10 gallon 2 HP air compressor is required for use (not included)
