FEATURES

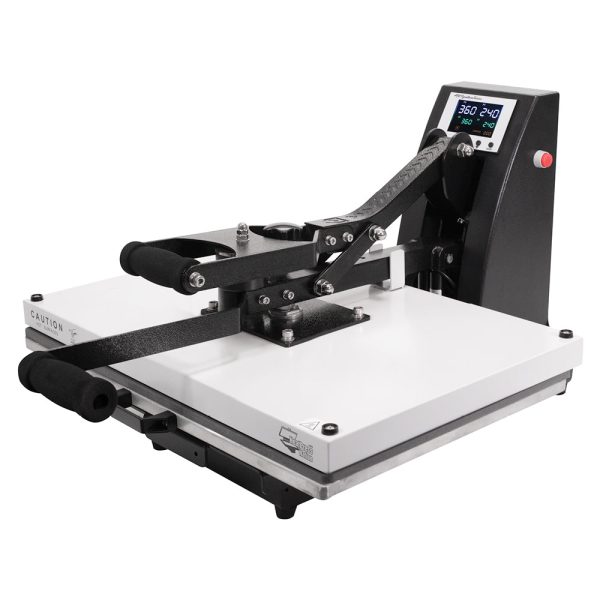

		Magnetic Auto-Open Release: Activated magnetically, the auto-open release feature on the HPN Signature series allows the heat press to open automatically when the timer reaches zero, giving your time to focus on other aspects of your project while your material transfers.
		Gas Shock Opening Mechanism: The HPN Signature Series provides high pressure with smooth and easy opening and closing action. The powerful clamp mechanism is now complemented by a gas shock opening mechanism, making it one of the most comfortable to operate manual heat presses on the market today.

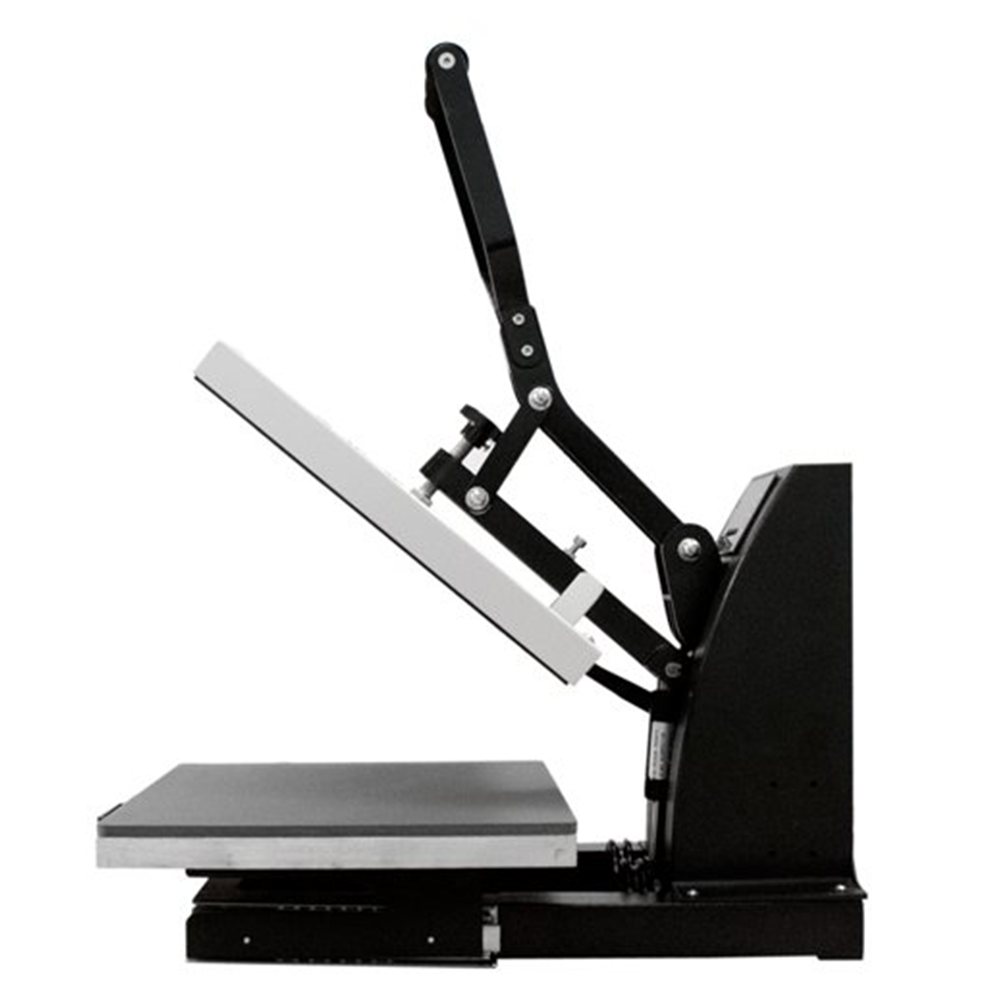

		Drawer Style Lower Platen: The drawer style lower platen allows you more space to lay down your transfer material without having to put your hands directly underneath the heat. This feature provides you with increased safety while maintaining the compact nature of a clamshell heat press.

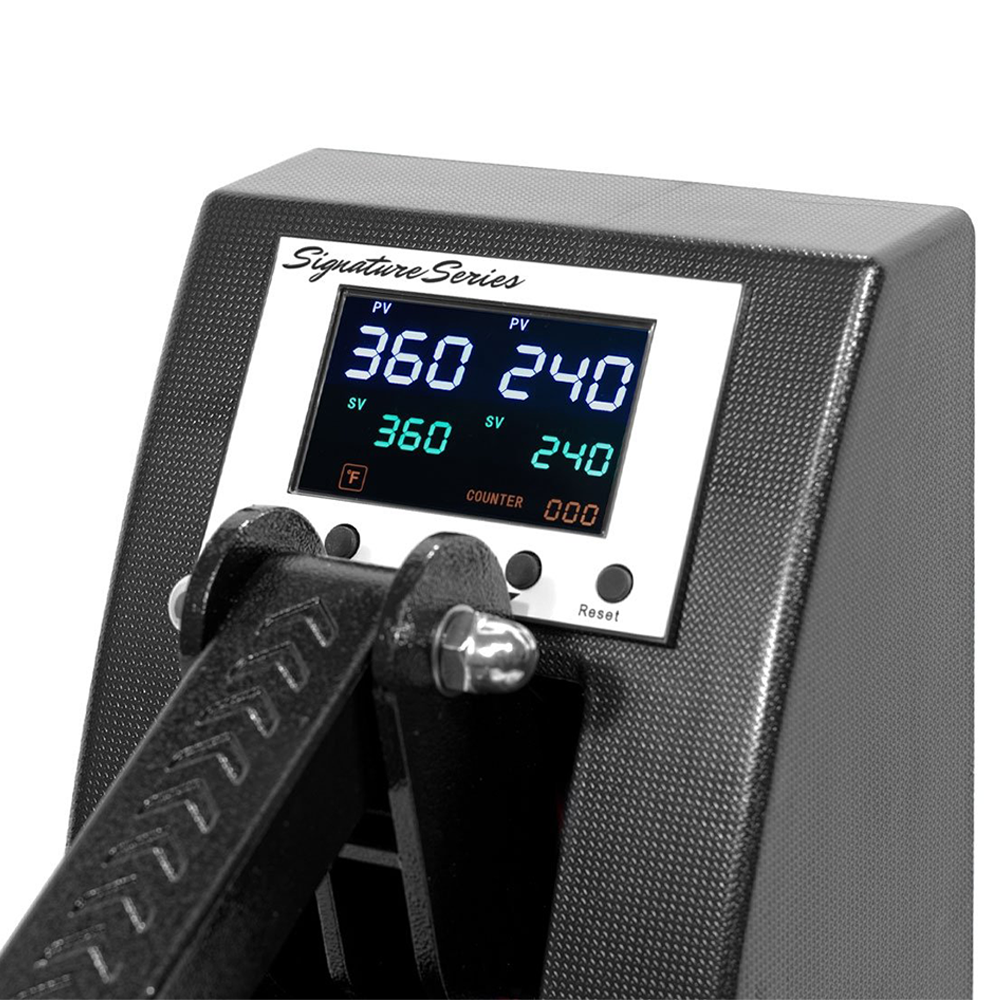

		Upgraded Time Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Signature Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds for it reaches zero to prevent overheating of your material.

• Improved heating element for quicker heat up
• Opens approximately 50 degrees
• Thick items capable (up to 1 2 inch thick)
• Full pressure range knob
• Reinforced structure to ensure high pressure
• Adjustable low to high-pressure clamp
• Solid steel welded framework
• Complete commercial business grade

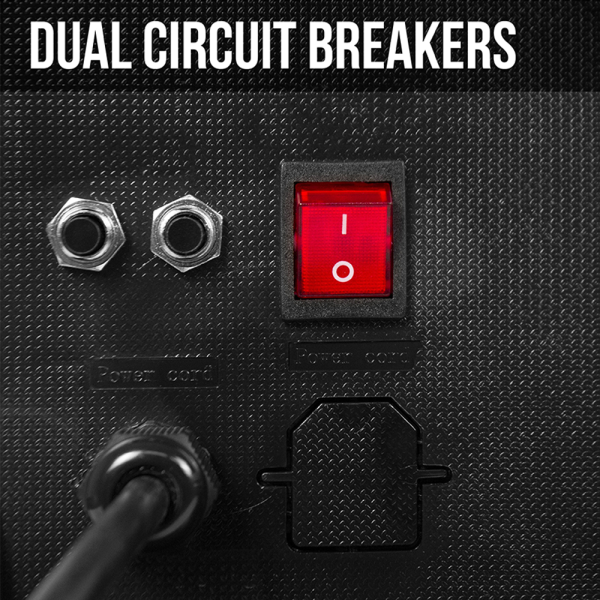

• Dual Fuse Protection
• Secondary Leverage Handle
• 16 x 24 Baked on, Non-Stick Coated Heat Platen (Actual heat platen size measures in at 15.75 x 23.5 )
• Digital Temperature Control
• Digital Automatic Timer

• SPECIFICATIONS

  • Heat Press Style: Auto-Open Clamshell Drawer

  • Heat Press Base Dimensions: 27 x 24 x 32 (D x W x H in open position)

  • Gauge Reading: Fahrenheit or Celsius degree measure

  • Voltage: 110V

  • Power Rating: 1600W 14 Amps

  • Maximum Temperature: 400º F

  • Time Range: 0-999 Seconds

  • Shipping Weight: 129.2 lbs

  • Shipping Dimensions: 31.5 x 29.1 x 21.7

  • ===

    tab_warranty



    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they ll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!

    In addition, all HPN Signature Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.



    EXTENDED WARRANTY

    Protect your investment by extending the manufacturer s parts and service warranty.

    HeatPressNation s MyExpert Protection keeps your device covered when bad luck happens. We ll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

    PLANS

    • 1 Year Total Coverage – Included with purchase
    • 2 Years Total Coverage – $49.99
    • 3 Years Total Coverage – $79.99
    • 4 Years Total Coverage – $99.99

    • Add MyExpert Protection when adding your product to the cart

      ===

      tab_instructions

      HPN Signature Series Instruction Manual
